IPsec Main and Quick Mode packet flow (Decrypted)

-

Main Mode 1st Message:

Generation of the initiator cookie — An 8-byte pseudo-random number used for anticlogging CKY-I = md5{(src_ip, dest_ip), random number, time, and date}

Generation of the responder cookie — An 8-byte pseudo-random number used for anticlogging CKY-R = md5{(src_ip, dest_ip), random number, time, and date}





Main Mode 2nd Message:





Before 3rd and 4th message:

  • Public key: Xa ,Xb
  • Nonce = Ni, Nr

How public key is created?
  • DH public value = Xa
  • Xa = g^a mod p
  • g is the generator
  • p is a large prime number
  • a is a private secret known only to the initiator

Main Mode 3rd message:

  • Key exchange
  • Public key
  • NAT-D

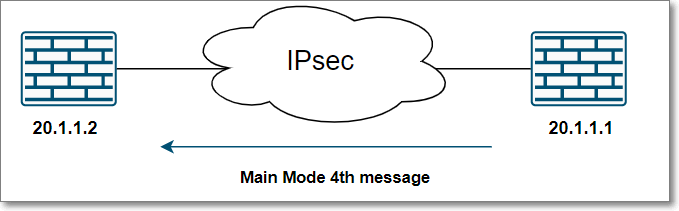

Main Mode 4th Message:
  • Key exchange
  • Public key
  • NAT-D

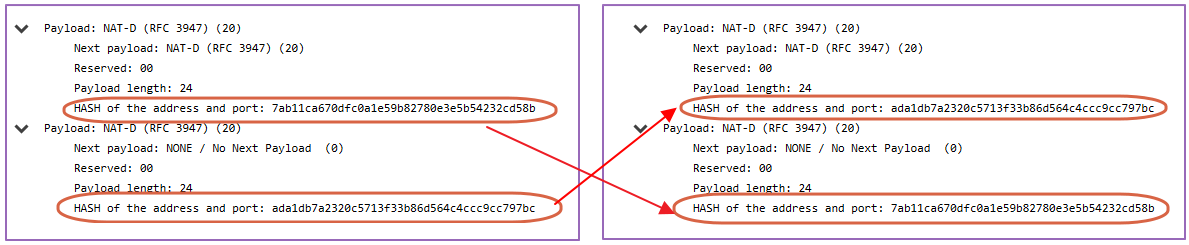

NAT-D



Before 5th and 6th message:

Initiator secret = (Xb)a mod p = (Xa)b mod p = responder secret

This value is the shared secret between the two parties and is also equal to g^ab

PRF => Pseudo random function based on negotiated hash
  • SKEYID's = PRF [Pre-shared key, Ni ,Nr ]
  • SKEYID_d = PRF [SKEYID, g^ab | CKY-I | CKI-R| 0 ]  ==> To calculate key material
  • SKEYID_a = PRF [SKEYID, SKEYID_d, g^ab | CKEY-I | CKI-R | 1 ]  ==> Data Integrity and Authentication to subsequent message
  • SKEYID_e = PRF [SKEYID, SKEYID_a, g^ab | CKEY-I | CKI-R | 2 ] ==> Encrypt subsequent message


Main Mode 5th Message:

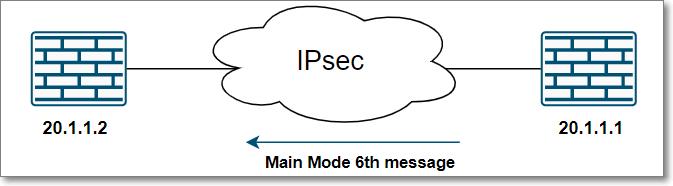

Main Mode 6th Message:






Quick Mode 1st Message:

If PFS (Perfect forward secrecy) is enabled, it will created new DH secret
  • New Nonce Generated: Nr'
  • New DH public value = Xb'
  • Xb' = g^b mod p
  • g is the generator
  • p is a large prime number
  • b is a private secret known only to the responder

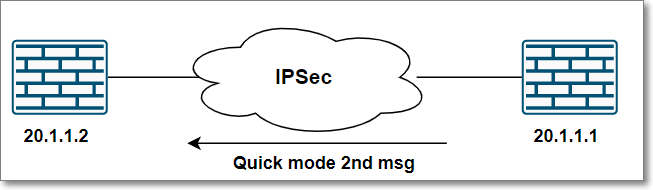

Quick Mode 2nd Message:







Initiator generates IPsec keying material ==>

Step 1. Generate new DH shared secret = (Xb')a mod p

Step 2. IPsec session key for incoming IPsec SA
= PRF (SKEYID_d, protocol (ISAKMP), new DH shared secret, SPIr, Ni', Nr')

Step 3. IPsec session key for outgoing IPsec SA
= PRF (SKEYID_d, protocol (ISAKMP), new DH shared secret, SPIi, Ni', Nr')

Responder generates IPsec keying material ==>

Step 1. Generate new DH shared secret = (Xa')b mod p

Step 2. IPsec session key for incoming IPsec SA
= PRF (SKEYID_d, protocol (ISAKMP), new DH shared secret, SPIi, Ni', Nr')

Step 3. IPsec session key for outgoing IPsec SA
= PRF (SKEYID_d, protocol (ISAKMP), new DH shared secret, SPIr, Ni', Nr')



Quick Mode 3rd Message:
